ArchitEX™ FRP Structural Profiles

CIRCULAR HOLLOW SECTION

The section values shown on this page have been calculated from the nominal dimensions of the profile. All the shapes listed in the table are available but not all are stocked. For information on availability and price, contact Treadwell Group on 1800 246 800.

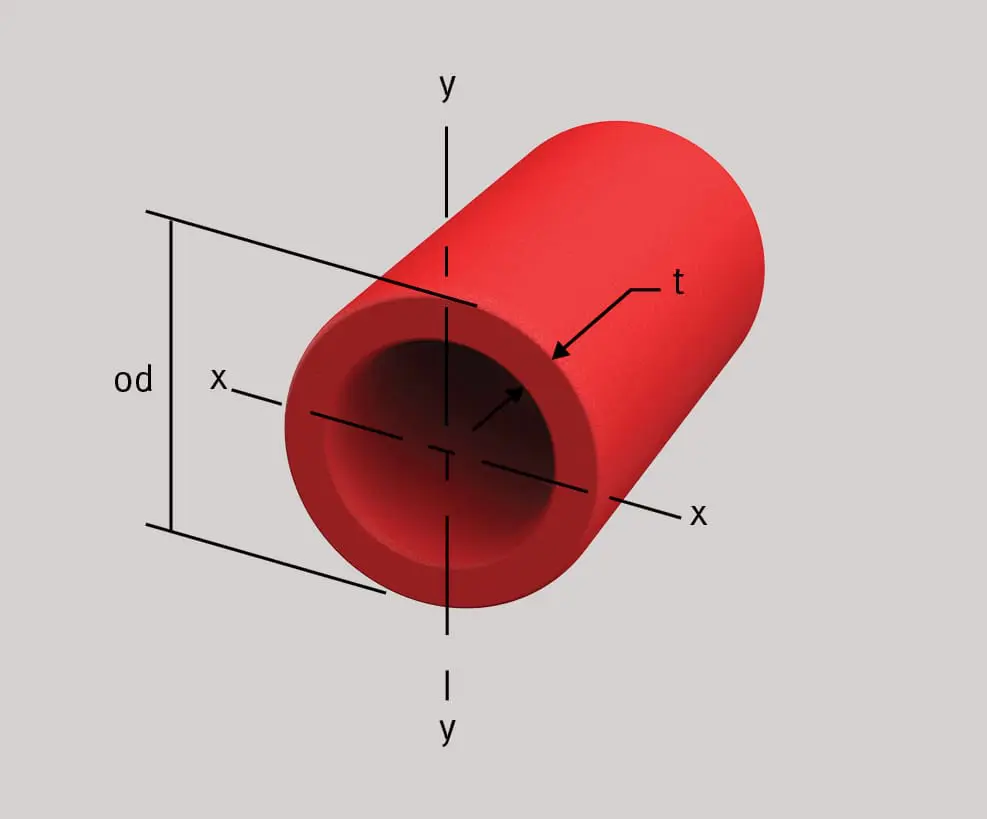

Circular Hollow Section Section Dimensions Section Properties
Part Part Number

od mm

t mm

Area mm2

Weight kg/m

l mm4

S mm3

r mm

Diameter Wall
25.4 x 2.4mm ARX-CH02502 25.4 2.4 174.2 0.31 11586 912 8.1
25.4 x 3.2mm ARX-CH02503 25.4 3.2 219.4 0.39 14027 1105 7.9
28.6 x 3.2mm ARX-CH02903 28.6 3.2 251.6 0.45 20812 1475 9.1
31.8 X 2.4mm ARX-CH03202 31.8 2.4 219.4 0.39 24974 1516 10.4
31.8 x 3.2mm ARX-CH03203 31.8 3.2 283.9 0.51 29136 1803 10.2
31.8 x 6.4mm ARX-CH03206 31.8 6.4 509.7 0.91 41623 2786 9.1
38.1 x 3.2mm ARX-CH03803 38.1 3.2 348.4 0.62 54110 2826 12.4
38.1 x 6.4mm ARX-CH03806 38.1 6.4 632.3 1.13 83246 4425 11.4
44.5 x 3.2mm ARX-CH04503 44.5 3.2 412.9 0.74 87409 3933 14.7
44.5 x 6.4mm ARX-CH04506 44.5 6.4 761.3 1.36 141519 6391 13.7
47.6 x 4.8mm ARX-CH04805 47.6 4.8 638.7 1.14 149843 6227 15.2
50.8 x 6.4mm ARX-CH05106 50.8 6.4 883.9 1.58 224765 8849 15.7
76.2 x 6.4mm ARX-CH07606 76.2 6.4 1393.5 2.49 857437 22450 24.9
76.2 x 12.7mm ARX-CH07613 76.2 12.7 2535.5 4.54 1327778 34904 22.9
